UHF RFID integruoti skaitytuvai

RFID UHF   vidutinio / ilgo nuotolio integruoti skaitytuvai

Produkto aprašymas :

Didelio našumo UHF RFID integruotas skaitytuvas.  Naudojamas efektyvus skaitmeninių signalų apdorojimo algoritmas ,  greitos skaitymo / rašymo operacijos su aukštu identifikavimo lygiu. Plačiai naudojamas daugelyje RFID taikymo sistemų, pvz., Logistikos, prieigos kontrolės, kovos su padirbinėjimu , pramoninės gamybos procesų kontrolės sistemos , sandėliavimas ir.t.t

  1. Support ISO18000-6B, ISO18000-6C(EPC C1G2) protocol tag;
  2. 865~868MHz, 902~928MHz frequency band(frequency customization optional);
  3. FHSS or Fix Frequency transmission;

Interfeisai Standart (RS232, RS485, Wiegand) , Opcijos (WIFI,TCP/IP)

Integruoti

  1. Self-intellectual property;
  2. RF output power up to 30dbm(adjustable);
  3. 12 dbi circular antenna with effect distance up to 6m~15 m*;
  4. Support auto-running, interactive and trigger-activating work mode;
  5. Low power dissipation with single +9V DC power supply
  6. Reader size    445x445x55 mm
    * Effective distance depends on antenna, tag and environment.



  1. Impinj R2000 chip ;
  2. RF output power up to 30dbm(adjustable);
  3. 8dbi circular antenna with effect distance up to 8m~10 m*;
  4. Support auto-running, interactive and trigger-activating work mode;
  5. Low power dissipation with single +9V DC power supply
  6. Reader size    305x305x70 mm
    * Effective distance depends on antenna, tag and environment.



  1. Self-intellectual property;
  2. RF output power up to 30dbm(adjustable);
  3. 8 dbi circular antenna with effect distance up to 8m~10 m*;
  4. Support auto-running, interactive and trigger-activating work mode;
  5. Low power dissipation with single +9V DC power supply
  6. Reader size    257x257x40 mm
    * Effective distance depends on antenna, tag and environment.

Integruoti su Linux OS

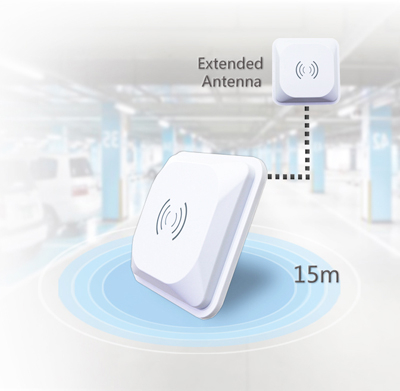

Extensible Integrated UHF RFID Reader

High performance integrated UHF RFID Readerbased on Impinj R2000 chip, supporting ISO18000-6B/6C protocol. It’s long rang RFID reading, fast identification, excellent multi-tag reading, strong Anti-collision, IP66 weatherproof, win global clients great feedback.

Impinj R2000 chip, double power amplifier  circuit
Linux OS system, ARM9 CPU, 24hrs X 365days working
Support off-line working, 128M RAM and 256M ROM
High RFID performance, max 15m distance
Inner 9dBi antenna, 1 other antenna extensible
Large multiple tags reading, 400 times/second
RS-232, RS-485,Wiegand, RJ45, I/O interfaces
I/O interfaces: 2 optocoupler input/ 2 relay output

Operation System: Linux 2.6
CPU: ARM9, 400MHz
Memory Capacity: DDR SDRAM :128M;  ROM: 256M
Size:  290mm×290mm×115mm



R2000 Long Range Reading Integrated RFID Reader

High performance UHF RFID reader based on R2000 chip,  supporting ISO18000-6C protocol, long range RFID reading, fast identification, excellent multi-tag reading, strong Anti-collision, IP66 rugged. Widely used fixed asset management, logistic, warehouse inventory, products tracking transshipment , vehicle management, production automation etc.

Impinj R2000 platform, ARM9 CPU
Long Range Reading up to 12m, Multi-tags Reading
Linux OS, WiFi, Bluetooth, RJ45, RS232 Interfaces
IP66 Rugged, Circular 9dBi Antenna Built-in

Operation System: Linux 2.6
CPU: ARM9, 400MHz
Memory Capacity: DDR SDRAM :128M;  ROM: 256M
Size:  290mm×290mm×55mm



Miniature Integrated RFID Reader  with RJ45

High performance UHF RFID Reader based on Impinj R2000 chip, supporting ISO18000-6C protocol. Widely used for asset management, logistic, warehouse inventory, products transshipment, vehicle management, production automation, etc.

peration System: Linux 2.6
CPU: ARM9, 400MHz
Memory Capacity: DDR SDRAM :128M;  ROM: 256M
Size:  164mm×164mm×49.6mm
Weight: 1.3Kgs
Housing Material: Aluminum + PC
Software Support RSSI ,antenna detection, online update, data filtering
Antenna: Circular 6dBi built-in
Reading Distance: 0-8m (depending on environment)
Writing Distance: 0-4m (depending on environment)
